    70m/Min Online Check Weigher

    Ask Lasest Price
    Brand Name : ZON PACK
    Model Number : ZH-DW300
    Certification : CE Certification
    Price : 5000-6000USD per set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 300 Sets per month
    Delivery Time : 20-25 Working days
    • Product Details
    • Company Profile

    70m/Min Online Check Weigher

    Factory directly sale 70m/min belt speed high speed online checkweigher for sale


    Technical Feature

    1. Large size color LCD touch screen interface, the operation is simple and direct display.

    2. Simple mechanical structure, can quickly remove cleaning maintenance.

    3. Can store 100 product parameters, the convenient user use.

    4. Automatic zero tracking system, guarantee the stability of detection.

    5. Built-in temperature and noise compensation system, ensure the data is reliable.

    6. The dynamic weight compensation technology, ensure the data to be more effective

    7. Parameters set password protection, only management operation.

    8. Strong self diagnosis function, effectively improve the efficiency of the operator to deal with failure.


    Technical Specification

    ModelZH-DW160ZH-DW230SZH-DW230LZH-DW300

    ZH-DW400

    ZH-DW500ZH-DW600
    Weighing Range10-600g20-2000g20-2000g50-5000g0.2-10kg0.5-20kg10-50kg
    Scale Interval0.05g0.1g0.1g0.2g1g1g5g
    Best Accuracy±0.1g±0.2g±0.2g±0.5g±1g±2g±5g
    Max Speed250 pcs/min200 pcs/min155pcs/min140pcs/min105pcs/min75pcs/min75pcs/min
    Belt Speed70m/min70m/min70m/min70m/min70m/min60m/min60m/min
    Product Size200mm (L)
    150mm (W)
    250mm (L)
    220mm (W
    350mm (L)
    220mm (W)
    400mm (L)
    290mm (W)
    550mm (L)
    390mm (W)
    700mm (L)
    490mm (W)
    1000mm (L)
    590mm (W)
    Weighing
    Platform
    Size
    280mm (L)
    160mm (W)
    350mm (L)
    230mm (W)
    450mm (L)
    230mm (W)
    500mm (L)
    300mm (W)
    650mm (L)
    400mm (W)
    800mm (L)
    500mm (W)

    1200mm (L)
    600mm (W)

    No. of Sorting Segment2 Segments or 3 Segments
    Rejectorair blow, Pusher, shifter
    Power Parameter220V/110V 50/60Hz
    Protection LevelIP30/IP54/IP66
    Frame MaterialSUS304

    Application of the Check Weigher
    ZH-DW series check weigher is suitable for in line weight check of food, medicine, chemical, consumer

    product, etc.It has a widely application.

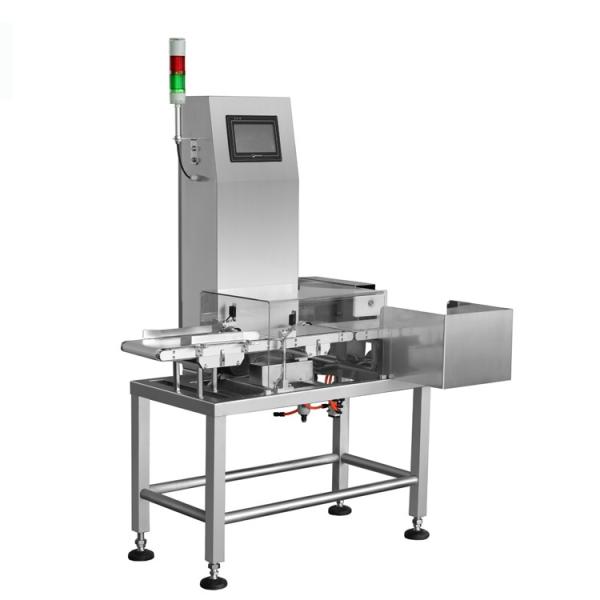

    Machine Details

    70m/Min Online Check Weigher


    Our Service

    Semi-automatic beans bag filling and packing machine for small business 3 Semi-automatic beans bag filling and packing machine for small business 4


    Pre-Sales Service After-Sales Service
    * Inquiry and consulting support. * Training how to install the machine, training how to use the machine.
    * Sample testing support. * Engineers available to service machinery overseas.

    * View our factory.


    Service Terms:

    Our mission is provide high quality products and comprehensive service to our customers.We are dedicated to

    providing customers with perfect and efficient service.

    1. Training service:

    We will train your engineer to install our machines and how to fix some small problems.You can send your

    engineer to our factory or we can dispatch our engineer to your company.

    2. Trouble shooting service:

    Sometimes if you can not fix the problem by yourselves,we will send our engineer to help you if you need.By the

    way,you need to afford the round trip and accommodation fee.

    3.Spare part replacement:

    Our warranty time is 18 months.In this period,if your spare part is broken,we will send you the part for free.

    4.The documents that will be supplied:

    1) Invoice

    2) Packing List

    3) Bill of Lading

    4) Other files that buyer wanted.
